Products
PVC-U conduit & fittings
Available in white (WH), black (BK) and grey (GR) — add the required colour code to the end of the product code. Codes prefixed AEKM carry the BSI Kitemark.

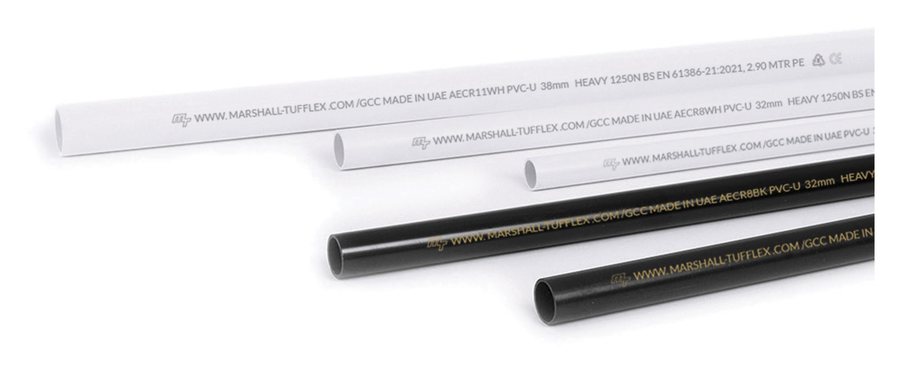

Round Conduit
20 · 25 · 32 · 38 · 50mmRound conduit made from specially formulated super high impact self-extinguishing PVC-U compound, supplied in 2.9m lengths.
Light gaugePlain end — AECR2 / AEKMCR2 series
Medium gaugePlain end — AECR14 / AEKMCR14 series
Heavy gaugePlain end — AECR6 / AEKMCR6 series
Socketed end — light, medium & heavy gaugeAECR2SK / AECR14SK / AEKMCR6SK series
| Code (Kitemark) | O.D. | Length | Frame quantity |
|---|---|---|---|
| AEKMCR6 | 20mm | 20 × 2.9m | 5,000 × 2.9m |
| AEKMCR7 | 25mm | 20 × 2.9m | 3,000 × 2.9m |
| AEKMCR8 | 32mm | 10 × 2.9m | 1,800 × 2.9m |
| AEKMCR11 | 38mm | 10 × 2.9m | 1,300 × 2.9m |
| AEKMCR12 | 50mm | 5 × 2.9m | 750 × 2.9m |
Certified to: BS EN IEC 61386-1:2008+A1:2019 · BS EN IEC 61386-21:2021+A11:2021 · BS EN IEC 61386-22:2021+A11:2021 · BS EN IEC 61386-23:2021+A11:2021 · SASO GSO IEC 61386-1 and -21 where applicable.
Round Conduit Fittings
20 – 50mmStraight couplersAEMC2 – AEMC6
Expansion couplersAEMEC2 – AEMEC6 — for thermal movement
Plain bendsAEMNB2 – AEMNB6
ReducersMR2 — 25 × 20mm
Adaptors, female threadAEMAB2 – AEMAB6, with male bushes
Adaptors, male threadIMMA7 / IMMA8, with check ring
Male bushesAEMMB2 – AEMMB6
Spacer bar saddlesAEMSB2 – AEMSB6
Strap saddlesAEMSS2 – AEMSS6
Round 'U' clipsIMMMC2 – IMMMC4
Installation note: to accommodate thermal movement on surface installations, fit expansion couplers at a maximum of 6m intervals — reduced in areas of high ambient temperature.
Circular & Adaptable Boxes
IP65 / IP66All boxes have threaded brass inserts and provision for the MET1 brass earth terminal. PVC-U plain bored circular boxes suspend loads up to 3kg centrally at 60°C maximum, with M4 brass insert fixing centres.
Loop-in boxesAE2MRB12 · AE3MRB12 · AE4MBR12
Terminal 1-wayAE2MRB2 · AE3MRB2
Through 2-wayAE2MRB3 · AE3MRB3
Angle 2-wayAE2MRB4 · AE3MRB4
Tee 3-wayAE2MRB5 · AE3MRB5
Intersection 4-wayAE2MRB6 · AE3MRB6
Branch 2-way (U) / 3-way (Y)AE2MRB13 · AE2MRB14
Twin through way (H)AE2MRB15 · AE3MRB15
Lids, gaskets, extension ringsAEMCL1 · AEMRG1 · IMME2/3
Adaptable boxes, PVC-U106×106×67 to 230×230×82mm — IP65 & IP66
Adaptable boxes, ABS110×110×74 to 200×200×80mm — IP65
Switch Boxes, Flexible Conduit & Accessories
System-wideSurface mount boxes1 & 2 gang, square corners, 32mm depth — AEMSSB17K / AEMSSB23K
Flush mount boxes1 & 2 gang, 35mm depth — AEMSSB1 / AEMSSB3
Cover plates86×86mm and 86×146mm — AEMSCP2 / AEMSCP3
GI switch/socket back boxes1 & 2 gang, 35/47mm, to BS 4662
Corrugated flexible conduit20 – 50mm, AECC2000 – AECC5000
Flexible adaptors & glandsIMCC2010 / IMCC2010G series
Bending springsHeavy gauge (green end) & light gauge (white end), 20/25mm
Brass earthing terminalIMMET1 — 15 Amp
Conduit solvent cementAEMSC.12P 237ml · AEMSC.1P 473ml
PVC pipe cutterIMMTPC42
Also available from Marshall-Tufflex UK: cable trays and ladders, and cable management and floor box systems — both listed on our ADCE supplier registration alongside the UAE-manufactured ranges.
